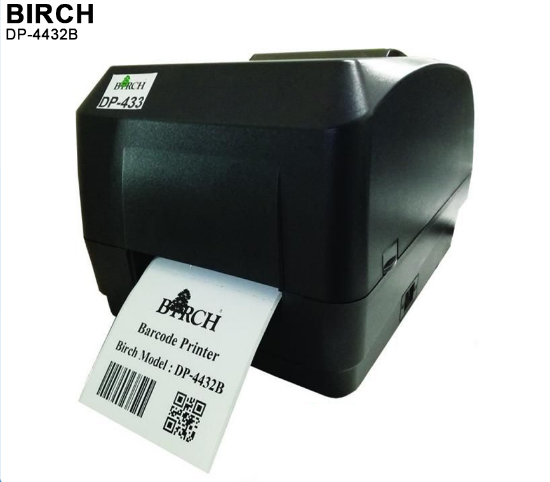

PRINTER MODEL
|
DP-44328
|
PRINTER MODEL
|
DP-44328
|
|
Resolution
|
8 dots/mm (203 DPI)
|
Sensors
|
Black mark reflective sensor (position adjustable)
Head open sensor Transmissive gap sensor Ribbon end sensor
|
|
Printing method
|
Thermal Transfer & Direct Thermal
|
|
Max. print speed
|
127 mm (5") / s
|
|
Real Time Clock
|
Standard
|
|
Max. print width
|
108 mm (4.25")
|
|
Internal fonts
|
8 alpha-numeric bitmap fonts Support TTF Font.
|
|
Max. print length
|
2794 mm (110")
|
|
Media type
|
Continuous, die-cut, black mark,
fan-fold, notched (outside wound)
|
8arcode
|
1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5,
EAN-8,EAN-13, EAN-128, UPC-A, UPC-
E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
2D bar code:PDF-417,
Maxicode, DataMatrix, QR code
|
|
Media width
|
20-112mm (0.78"-4.4")
|
|
Media thickness
|
0.06 ~ 0.254 mm (2.36 ~ 10 mil)
|
|
Label length
|
10 ~ 2,794 mm
(0.39" ~ 110")
|
|
Graphic
|
BIMAP,BMP,PCX(Max. 256 colors)
|
|
Label roll capacity
|
127 mm (5") OD (outside wound)
|
|
Font and barcode rotation
|
0°,90°,180°,270°
|
|
Ribbon &Ribbon width
|
300 m long, max. OD 67 mm, 1" core (ink coated
outside) ,40 mm ~ 110 mm (1.6" ~ 4.3")
|
|
Printer language
|
TSPL (EPL,ZPL,DPL)
|
|
Environment condition
|
Operation: 5 ~ 40°C, 25 ~
85% non-condensing
Storage: -40 ~ 60°C, 10 ~
90% non-condensing
|
|
Enclosure
|
Double-walled plastic
|
|
Physical dimension
|
234 mm(W)x194.8 mm(H)x302.5 mm (D)
|
|
Safety regulation
|
FCC, CE
|
|
Weight
|
3.1 kg(6.83 lbs)
|
|
Environmental concern
|
Comply with RoHS
|
|
Processor
|
32-bit RISC CPU
|
|
Accessories
|
①Windows labeling software CD disk;
②Quick start guide;③USB cable;
④Power cord;⑤External universal switching power supply;⑥Label spindle, fixing tab x 2, 1.5" core adapter x
2;⑦Ribbon spindle x 2;⑧Ribbon paper core;⑨Media
|
|
Memory
|
4MB Flash Memory, 8MB SDRAM SD card reader for Flash memory
expansion, up to 4 GB
|
|
Interface
|
• USB2.0 + RS232 + LAN (factory default)
• USB2.0 (factory option)
• RS-232 (factory option)
• Centronics (factory option)
• Internal Ethernet, 10/100 Mbps (factory option)
• Bluethooth (factory option)
• External 802.11 b/g/n wireless (factory option)
|
|
Factory options
|
Internal Ethernet, 10/100 Mbps,
RS-232, Centronics parallel interface
|
|
Dealer options
|
Peel-off module, Guillotine cutter (full cut or partial cut) Media thickness 0.06 ~ 0.19mm,500000 cuts;0.20 ~ 0.25mm,200000 cuts
|
|
Power
|
External universal switching power supply
Input: AC 100-240V, 1A, 50-60Hz Output: DC 24V, 2.5A, 60W
|
|
User options
|
External roll mount, media OD. 214 mm (8.4") with 25.4 mm (1") core, External roll mount board, Bluetooth module (serial interface), 802.11 b/g/n wireless module (serial interface), RFID module.
|
|
Operation
switch,button,LED
|
1 power switch, 1 feed button & 1
LED (3 colors: red, purple & bule)
|
|
